1) Heat and sound insulation. The 3-layer structure, modified UPVC material and the Polymer reinforcement fibrous material ensure the insulation effect.
2) UV resistance. Add the UV absorption additives to absorb the UV.
3) Acid and alkali resistance. The surface UPVC is stable and does not react with the acid and alkali.
4) Waterproofing and fireproofing. It meets the national B1 grade.
5) Impact resistance.
6) Typhoon resistance.
7) Easy installation, saving time and labour.
8) High physical strength to bear weight.
9) Long serve life, it is ensured to be used for 15 years.

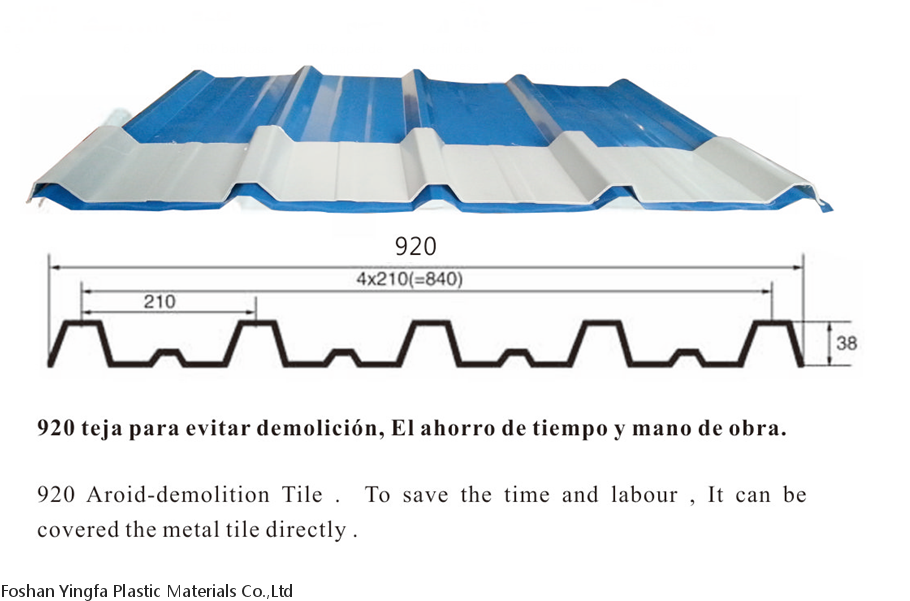

920 high wave trapezoid roof tile is specially designed for the color steel tile or other metal roof tile. Advantages are as follow:
1.Besides can be used directly on purlin. it can also be used on bad steel roof sheet. Because of the special design, when mending the broken part of the metal tile, people do not need to remove the metal tile and just need to cover it with the 920 high wave trapezoid roof tile. It’s easy to install, which saves time and labour and increase the economic benefits. The 3-layer structure of the 920 high wave roof tile ensures its excellent heat insulation property, which is suitable for the area where the weather is hot. 2. Combined with the accessories which is patent design, the high wave design 100% makes sure the problem of leakage when the rain pours. 3. It is made of 100% brand new raw material, which ensures the long serve life. In addition, the modified UPVC surface material and the Polymer reinforcement fibrous material give the acid and alkali resistant property to the 920 high wave trapezoid roof tile and improve its physical property. It not only can bear the loading from the 1.5 ton truck, but also can resist the typhoon, which is suitable for the area where the typhoon occurs frequently.
Name
Material
Color
Length
Width
Weight/ m2
Thickness
920 high wave trapezoid roof tile
the modified UPVC surface material + the Polymer reinforcement fibrous material
White or other
Adjustable
0.92m
6.2KG
3.0mm
5.2KG
2.5mm
4.2KG
2.0mm
Features: 1) Heat and sound insulation. The 3-layer structure, modified UPVC material and the Polymer reinforcement fibrous material ensure the insulation effect.
2) UV resistance. Add the UV absorption additives to absorb the UV.
3) Acid and alkali resistance. The surface UPVC is stable and does not react with the acid and alkali.
4) Waterproofing and fireproofing. It meets the national B1 grade.
5) Impact resistance.
6) Typhoon resistance.
7) Easy installation, saving time and labour.
8) High physical strength to bear weight.
9) Long serve life, it is ensured to be used for 15 years.

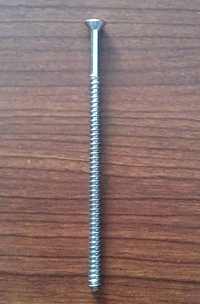

The cover of the screw is fully sealed, so as to solve the corrosion problem of the head of the screw, aging problem of the waterproof rubber ring and the leakage problem of the screw hole.
The waterproof rubber ring below the internal power point can make the roof tile and the screw tighter, which prevents the water leaking into the screw hole.
Increase the screw position and strengthen anti-typhoon function.
